SoSolenoid Valve for Vacuum Line Direct Lifting Diaphragm Type 3 / 8 1 / 2 3 / 4 1 inchlenoid Valve for Vacuum Line Direct Lifting Diaphragm Type 3 / 8 1 / 2 3 / 4 1 inch
1. How To Order
Model Orifice Thread Body Seal Coil Voltage
NLP21 12, 15, 20, G- G B-Brass N-NBR S51B 1-AC220V 2-DC24V
25, N- NPT S-SS304/316 E-EPDM 3-AC110V 4-DC12V
V-FRM/Viton 5-AC24V
NLP21 2 port Normal closed Solenoid Valve for Vacuum Line Direct Lifting Diaphragm Type 3 / 8 1 / 2 3 / 4 1 inch
Example : NLP21 20NBV S51B3: normal closed, 20mm orifice, NPT3/8", brass body, Viton seals, AC110V.
2. Solenoid Valve Specification
Medium: Air, gas, Water, oil etc. Temperature: PTFE seal:-30℃~392℃(14℉~176℉)
Orifice: 12, 15, 20, 25(mm) EPDM seal:-30℃~120℃(-22℉~248℉)
Viton seal:-30℃~150℃(-22℉~302℉)
PTFE seal:-60℃~200℃(-76℉~392℉)
Pressure: NLP21:0.0MPA~1.0MPA (0PSI~145PSI) Port thread: NPT, G Thread
Port size: 3/8”, 1/2”, 1", NPT BSPP thread
Voltage: DC:12V, 24V, Coils: S51B, 30VA(AC),24W(DC),IP65,100%ED
AC:24V, 110V, 120V, 220V, 240V
Tolerance: ±10%
Material: Body- Brass, stainless steel, Aluminum, Character: 1. Direct Lifting diaphragm
Seal- VITION, NBR, EPDM, PTFE 2. 0 Psi started
Armature- SS304 3. low pressure system usage
Plunger- SS430F 4. Vacuum air usage.
Stop- SS430F
Spring- SS304
Shading Rings- Copper
Special Coils: Latching coil DC6~24V
3. Detailed Information
NLP21 2 port normal closed Solenoid Valve for Vacuum Line Direct Lifting Diaphragm Type 3 / 8 1 / 2 3 / 4 1 inch
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(40VA) | DC(18W) |
| NLP212XXX | 3/8" | 12 | 4.5 | 0.0Mpa | 1.0Mpa | 1.0Mpa | Brass | NBR EPDM Viton (FKM) | S51B |
| NLP215XXX | 1/2" | 15 | 4.5 | 0.0Mpa | 1.0Mpa | 1.0Mpa | S51B |
| NLP220XXX | 3/4" | 20 | 9.3 | 0.0Mpa | 1.0Mpa | 1.0Mpa | S51B |
| NLP225XXX | 1" | 25 | 12 | 0.0Mpa | 1.0Mpa | 1.0Mpa | S51B |
4. Diemsion
Core Advantage-Customized packing service.
1. We can offer laser mark Service and transform your company information
and your part number of the products into QR code,
So that when your clients scan the QR code, they gets your company informations.
2. Customized cartons and box design are also available

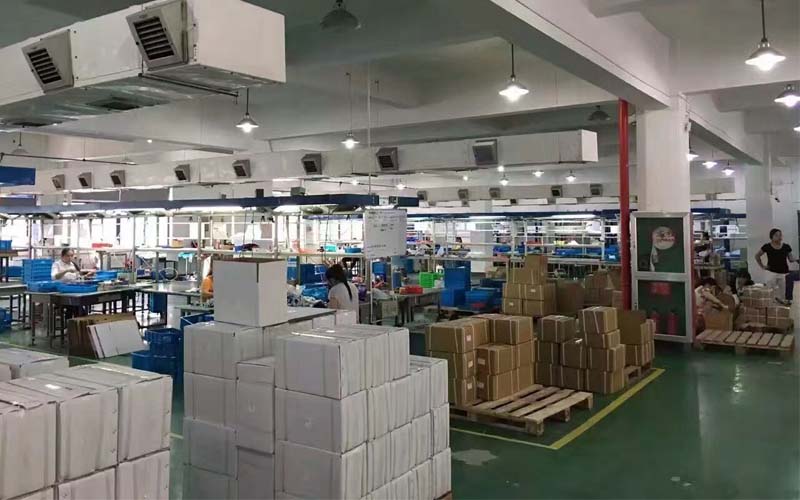

6. Factory Photos and Certifications
